recessed air diffusersconspicuously unobtrusive! our frameless recessed air vent one plus with flush installation in ceilings and walls.
available heretechnical informations
- Frameless air vent for supply and exhaust air
- Nominal sizes 100, 125, 160 mm
- Volume flow range 10–175 m³/h
- Made of sheet steel with electrostatic powder coating
- Please take measurements from the respective products
- Flush mounting in ceilings and walls
- Symmetrical, flow-optimised air flow
- Accessories: Tecanno volume flow regulator for air regulation and filter for air filtration
- Protected design, made in Germany
- 1
- 2
- 3
- 4
- 5

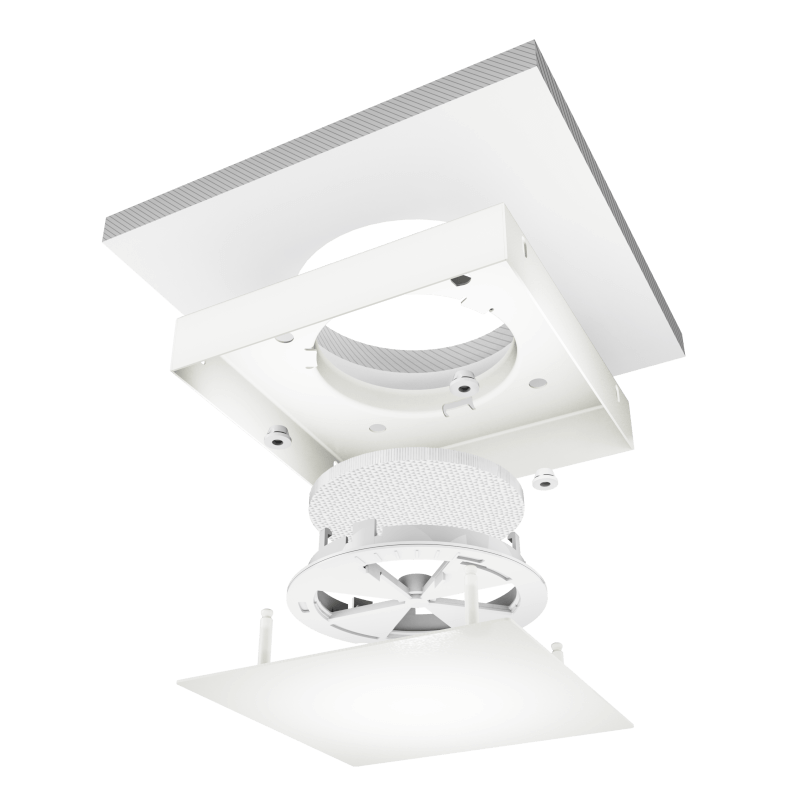

structure and function
- Frameless installation in ceilings and walls
- Vent housing in three nominal sizes (DN 100, 125, 160)
- Optional accessories: Dust filter
- Optional accessories: Volume flow regulator
- Plug-in cover integrates flush with the wall or ceiling and hides the ventilation system
material and colour
material and colour
ral 9016-20 traffic white
- colour
Standard colour RAL 9016-20, traffic white, layer thickness approx. 60 µ
- Material
Steel sheet with electrostatic powder coating
*Powder coating in all valid RAL Classic colours from the 840-HR and RAL 841-GL primary standards as well as special coatings are optional for an extra charge.
- 100mm
- 125mm
- 160mm
Vent One Plus 100
- Item No0101100-9016-20
- Connecting100mm
- Dimension160 x 160 mm
- 100mm
- 125mm
- 160mm
downloads and ressourcen
Technical data
Technical drawing
Accessories

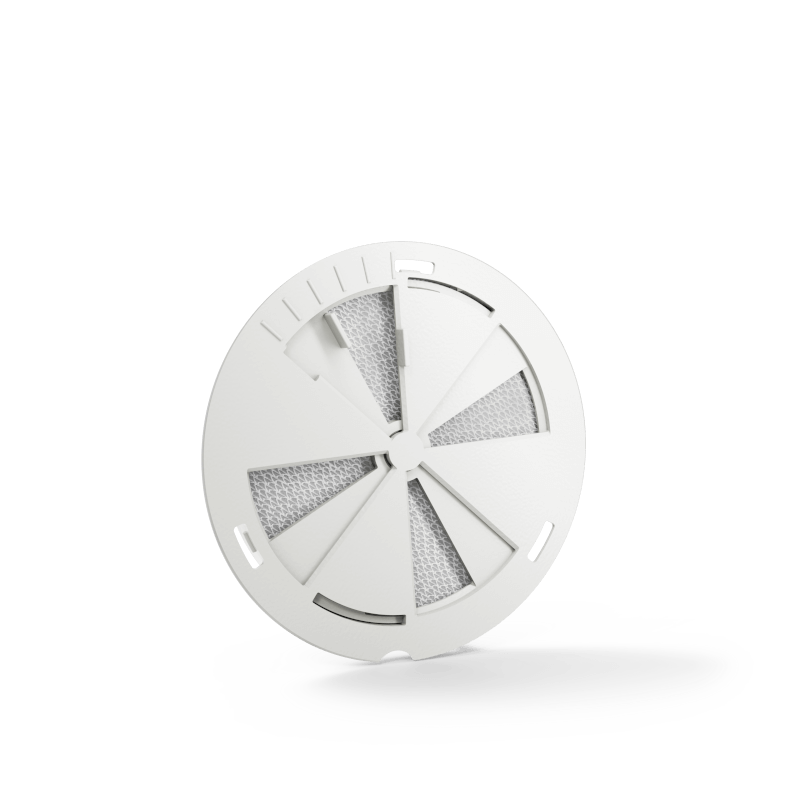

Volume flow regulator for regulating supply and exhaust air (Art. No. 10100 for DN 100 and Art. No. 10125 for DN 125)
Filter insert for dust filtration (Art. No. 20100 for DN 100 and Art. No. 20125 for DN 125)
Replacement filter for filter insert and for combination with volume flow regulator (Art. No. 30100 for DN 100 and Art. No. 30125 for DN 125)
Tecanno air outlets can be used for both supply and exhaust air and have a 100 percent freely usable cross-section for DN 100 or DN 125 ventilation pipes. We have specially developed inserts for air regulation and air filtration for our surface-mounted and recessed air diffusers DN 100 and DN 125. The volume flow regulator adjust the air flow. For the exhaust air the filter is suitable. The volume flow regulator can be combined with a filter and thus allows a controlled exhaust air.
Tender specification
Installation instructions
