single-room fan notoshigh-performance ventilation technology in an unobtrusive, modern design.
available heretechnical informations
- Flush integration into walls and ceilings for a nearly invisible look
- For efficient ventilation of bathrooms, toilets, storage rooms, and pantries
- Two-stage operation with 30 m³/h (basic ventilation) and 60 m³/h (demand ventilation)
- Adjustable run-on time approx. 6, 10, 15, 21 minutes
- On/off with light switch, separate switch or continuous operation
- Motor in a flow-optimized fan unit for optimal airstream
- Powder-coated steel sheet design cover with a snap-on system for easy, tool-free assembly and disassembly
- Accessories: Dust filter (Iso Coarse 30%, class G2)
- Standard colour: Traffic white, RAL 9016-20
- 1
- 2
- 3
- 4
- 5
structure and function
- Recessed-mounted into walls or ceilings
- Housing made of powder-coated sheet steel
- Ventilation fan
- Filter (Iso coarse 30%, class G2)
- Design-cover. Flush-mounted installation into the housing of the single-room fan
material and colour
material and colour
ral 9016-20 traffic white
- colour
Standard colour RAL 9016-20, traffic white, layer thickness approx. 60 µ
- Material
Steel sheet with electrostatic powder coating
*Powder coating in all valid RAL Classic colours from the 840-HR and RAL 841-GL primary standards as well as special coatings are optional for an extra charge.
Single-room fan Notos
With its two power levels of 30 m³/h and 60 m³/h, it ensures controlled ventilation in bathrooms, toilets, storage rooms, and pantries. Its particular advantage lies in its seamless integration into walls and ceilings, making it nearly invisible.
- Product description (279.99 KB)
- Technical drawing (104.45 KB)
- DXF file (15.41 MB)
- Show tender specification
- Item No0701080-9016-20
- Connecting80 mm
- Dimension198 x 198 mm
Details & Downloads
downloads and ressourcen
Product description
Technical drawing
Characteristic curve
Tender specification
Accessories

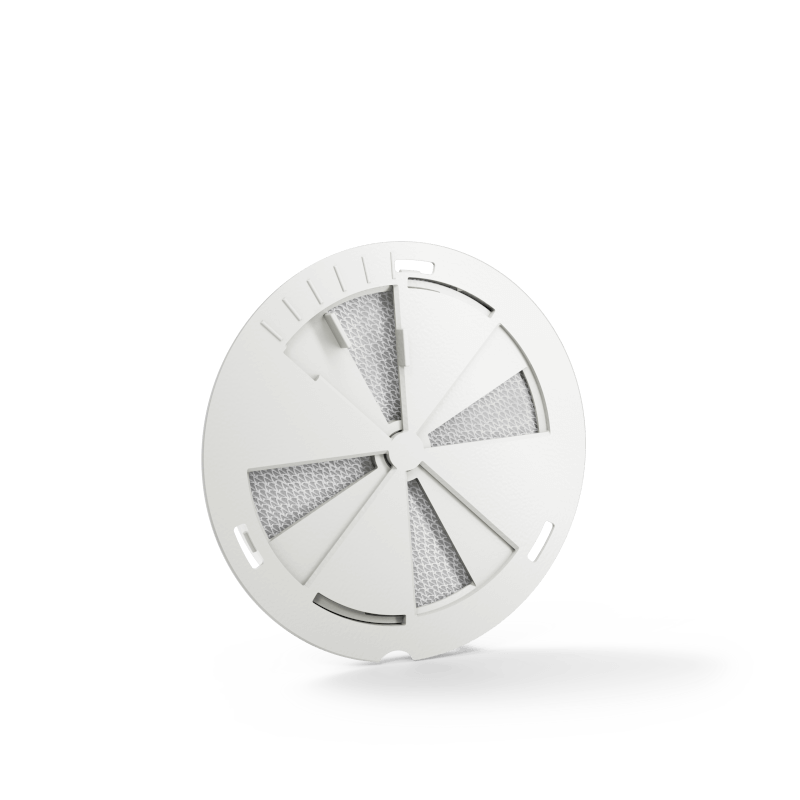

Tecanno Filter (Iso Coarse 30%, Class 2G), Art. No. 30125
The filter can be replaced without tools. The design cover is connected to the housing by a simple plug-in system. After removing the design cover, the filter can be inspected and replaced if necessary.
