frame - exclusive surface-mounted ventsexceptional air diffusers for unique design interiors.
available heretechnical informations
- Surface-mounted air diffusers for supply and exhaust air
- Nominal size 100 mm
- Volume flow range 10–37 m³/h
- Front made of white glass, black glass or brushed stainless steel
- Base body made of sheet steel with electrostatic powder coating
- Mounting on ceilings and walls
- Symmetrical, flow-optimised air diffusers
- Dimensions please refer to the respective products
- Accessories: Tecanno volume flow regulator for air regulation and filter for air filtration
- Protected design, made in Germany
- 1
- 2
- 3
- 4
- 5
structure and function
- Easy installation on ceilings and walls in dry or solid construction
- Basic body with air connection nozzles
- Optional accessories: Filter for dust filtration
- Optional accessories: volume flow regulator for air regulation
- Frame and front in three designs: glass white, glass black or stainless steel
material and colours
material and colours
ral 9016-20 traffic white + glass white
- colour
Base body in RAL 9016-20, traffic white, layer thickness approx. 60 µ, glass printed ceramic white on the back
- Material
Steel sheet with electrostatic powder coating and SITHERM single pane safety glass

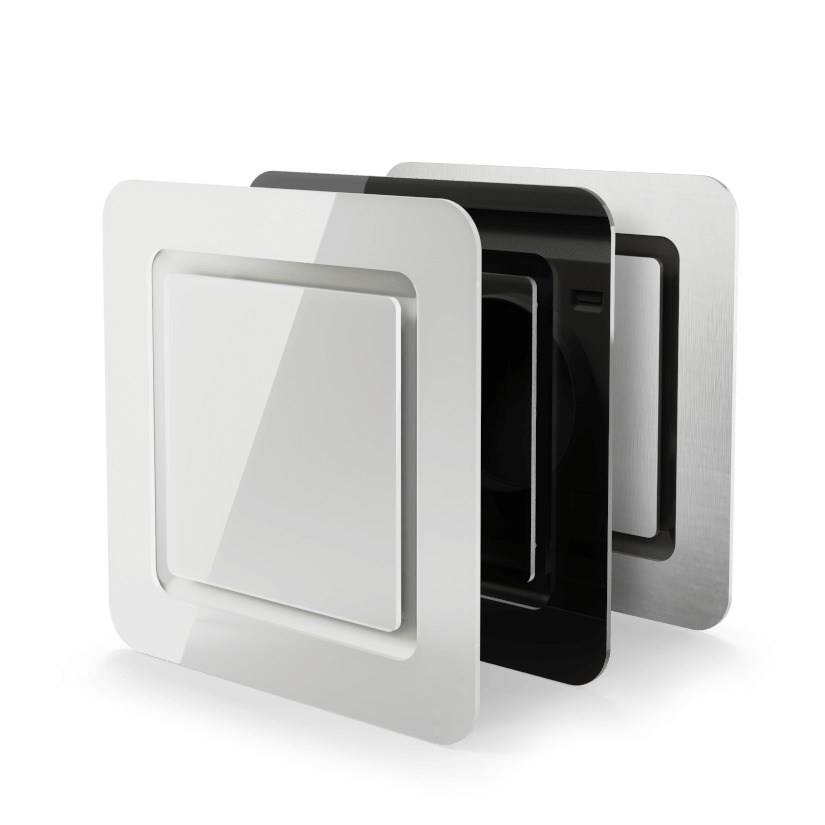

Vent Frame 100 glass white
- Item No0031100-9016-20
- Connecting100mm
- Dimension220 x 220 x 14 mm
Vent Frame 100 glass black
- Item No0032100-9005-20
- Connecting100mm
- Dimension220 x 220 x 14 mm
Vent Frame 100 brushed stainless steel
- Item No0033100-9005-20
- Connecting100mm
- Dimension220 x 220 x 14 mm
downloads and ressourcen
Technical data
Technical drawing
Accessories

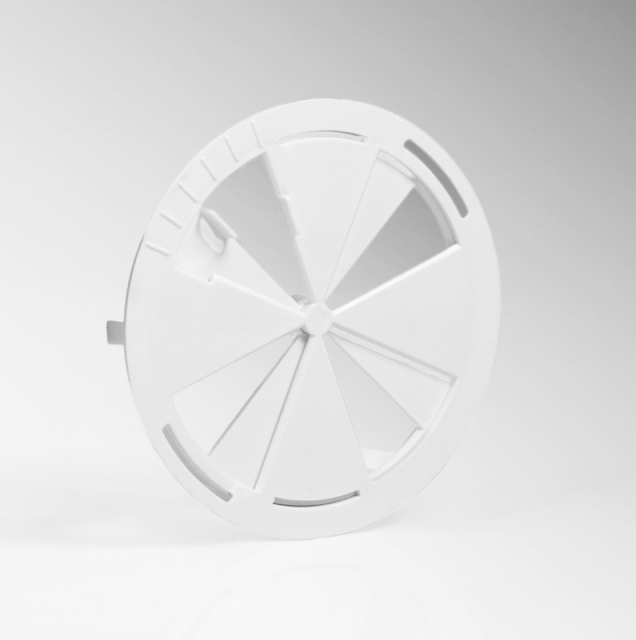

Volume flow regulator for regulating supply and exhaust air (Art. No. 10100 for DN 100 and Art. No. 10125 for DN 125)
Filter insert for dust filtration (Art. No. 20100 for DN 100 and Art. No. 20125 for DN 125)
Replacement filter for filter insert and for combination with volume flow regulator (Art. No. 30100 for DN 100 and Art. No. 30125 for DN 125)
Tecanno air outlets can be used for both supply and exhaust air and have a 100 percent freely usable cross-section for DN 100 or DN 125 ventilation pipes. We have specially developed inserts for air regulation and air filtration for our surface-mounted and recessed air diffusers DN 100 and DN 125. The volume flow regulator adjust the air flow. For the exhaust air the filter is suitable. The volume flow regulator can be combined with a filter and thus allows a controlled exhaust air.
