displacement flow diffusers squareour displacement air diffusers ensures consistently air distribution.
available heretechnical informations
- Displacement air diffusers
- Nominal size 100 mm
- Volume flow rate range: 10–63 m³/h
- Dimensions: 160 x 160 cm
- Perforated plate, square pitch
- Mounting on ceilings and walls
- Steel sheet with electrostatic powder coating
- Accessories: Tecanno volume flow regulation for air regulation and filter for air filtration
- Protected design, made in Germany
- 1
- 2
- 3
- 4
- 5
structure and function

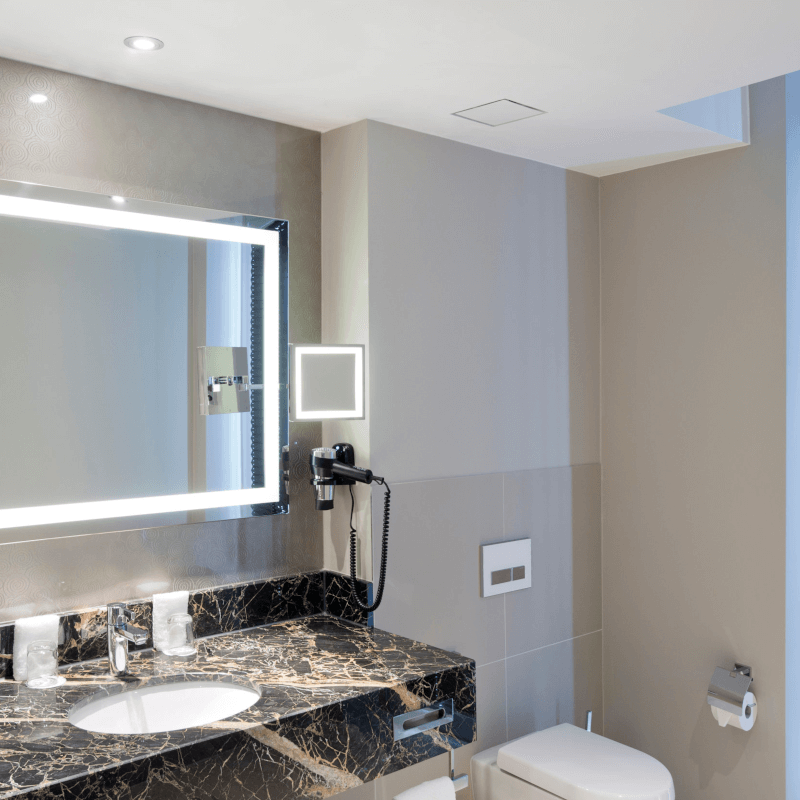

- Simple installation on ceilings and walls

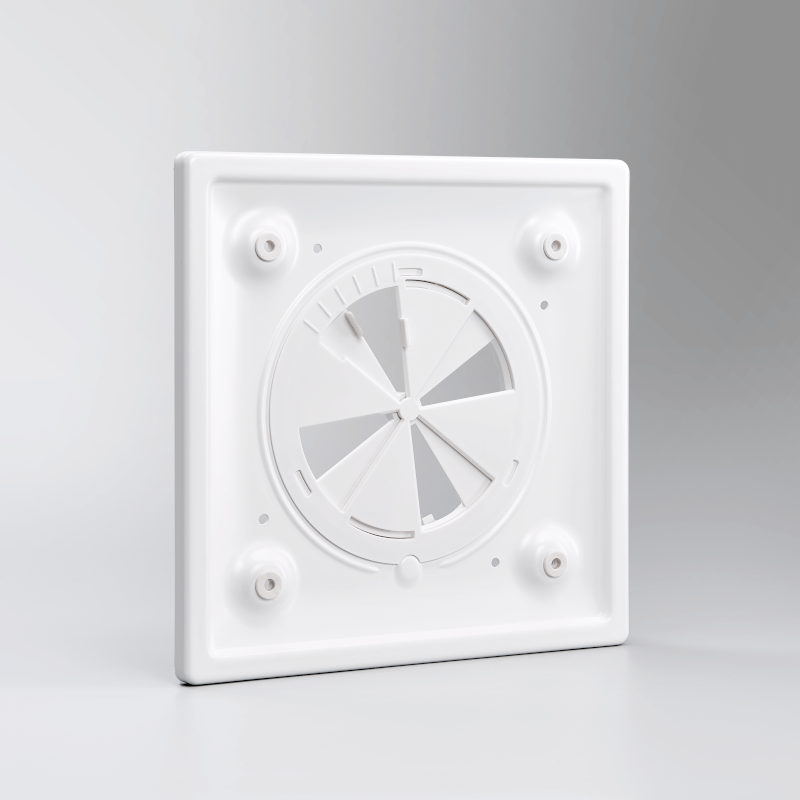

- Base plate with duct connection in nominal size 100
- Optional accessories: dust filter
- Optional accessories: volume flow insert for air regulation
- Perforated front plate with a diameter of 5x5 mm
material und farbe
material und farbe
ral 9016-20 traffic white
- colour
Standard colour RAL 9016-20, traffic white, layer thickness approx. 60 µ
- Material
Steel sheet with electrostatic powder coating
*Powder coating in all valid RAL Classic colours from the 840-HR and RAL 841-GL primary standards as well as special coatings are optional for an extra charge.
Displacement flow diffusers Square
- Item No0011100-9016-20
- Connecting100mm
- Dimension160 x 160 x 10 mm
downloads and ressourcen
Accessories
Volume flow regulator for regulating supply and exhaust air (Art. No. 10100 for DN 100 and Art. No. 10125 for DN 125)
Filter insert for dust filtration (Art. No. 20100 for DN 100 and Art. No. 20125 for DN 125)
Replacement filter for filter insert and for combination with volume flow regulator (Art. No. 30100 for DN 100 and Art. No. 30125 for DN 125)
Tecanno air outlets can be used for both supply and exhaust air and have a 100 percent freely usable cross-section for DN 100 or DN 125 ventilation pipes. We have specially developed inserts for air regulation and air filtration for our surface-mounted and recessed air diffusers DN 100 and DN 125. The volume flow regulator adjust the air flow. For the exhaust air the filter is suitable. The volume flow regulator can be combined with a filter and thus allows a controlled exhaust air.
Tender specification
